Jetfloat® BOAT CLEAT with nut

Art Numbers:

201000

Colors:

white

Specs:

0,3 kg

Temperature resistance:

-60°C bis +80°C

Raw material:

LUPOLEN 5261 Z, high-molecular plastic (HD-PE). Processing of 100% pure material, no addition of recycling materials.

Other properties:

• UV stable and weatherproof
• Frost-proof
• Impact tough
• Rotting-proof &
• food-safe
• Salt water and acid resistant
• Low maintenance

Jetfloat® BOAT CLEAT with screw joint unit

Art Numbers:

423200, 423300

Material:

Galvanized steel, Stainless steel

Specs:

2 kg

Info:

BOAT CLEAT with screw joint unit, 200mm high/200mm wide

Jetfloat® SCREW JOINT UNIT complete

Art Numbers:

420000, 420100

Material:

Galvanized steel, Stainless steel

Specs:

0,75 kg

Info:

Ø 44/H 64mm (4 lugs)

Jetfloat® SCREW JOINT UNIT with ring

Art Numbers:

420200, 420300

Material:

Galvanized steel, Stainless steel

Specs:

0,9 kg

Info:

Ø 44/H 64mm (4 lugs)

Jetfloat® SCREW JOINT UNIT with ring, heavy duty

Art Numbers:

420400, 420500

Material:

Galvanized steel, Stainless steel

Specs:

1,1 kg

Info:

SCREW JOINT UNIT with ring complete, heavy duty
for mooring, Ø 44/H 64mm (4 lugs), with cap nut

Jetfloat® DOUBLE SCREW JOINT UNIT

Art Numbers:

422000, 422100

Material:

Galvanized steel, Stainless steel

Specs:

2 kg

Info:

DOUBLE SCREW JOINT UNIT for double-layered connection of elements

Jetfloat® DOUBLE SCREW JOINT UNIT - short

Art Numbers:

422000, 422100

Material:

Galvanized steel, Stainless steel

Specs:

1,9 kg

Info:

DOUBLE SCREW JOINT UNIT – clamping height for 2 lugs – for double-layered connection of elements

Jetfloat® boat mounting

Art Numbers:

423000, 423100

Material:

Galvanized steel, Stainless steel

Specs:

2,6 kg

Info:

FLUSH MOORING RING

Jetfloat® CROSS BOLLARD - edge

Art Numbers:

423800, 423900

Material:

Galvanized steel, Stainless steel

Specs:

2 kg

Info:

CROSS BOLLARD with holding fixture as lateral screw joint unit, galvanised

Jetfloat® CROSS BOLLARD - pin

Art Numbers:

423801, 423901

Material:

Galvanized steel, Stainless steel

Specs:

2 kg

Info:

CROSS BOLLARD with holding fixture as connecting pin

Jetfloat® CONNECTING PIN with stainless steel insert - 25 mm

Art Numbers:

424100

Material:

Stainless steel

Specs:

1,1 kg

Info:

CONNECTING PIN with stainless steel insert, inner Ø 25mm, for fastening of umbrellas, etc. Colour of pin to be specified

Jetfloat® GUIDING SLEEVE FOR UMBRELLAS

Art Numbers:

424200, 424300

Material:

Galvanized steel, Stainless steel

Specs:

4,6 kg

Info:

GUIDING SLEEVE FOR UMBRELLAS, max. shaft Ø 50mm, including screw joint unit

Jetfloat® FLAG POLE

Art Numbers:

430900

Material:

Stainless steel

Specs:

6,2 kg

Info:

FLAG POLE, 4 rings, height 3m,
mounting as for connecting pin

Jetfloat® PILE CAGE for tubes

Art Numbers:

450000, 450001

Material:

Galvanized steel

Specs:

6,6 kg, 7,3 kg

Info:

450000 – PILE CAGE for tubes up to 60mm Ø, holding fixture 2L,
including screw joint units, galvanised

450001 – PILE CAGE for tubes up to 100mm Ø , holding fixture 2L, including screw joint units, galvanised

Jetfloat® PILE CAGE max. 50 mm

Art Numbers:

450200

Material:

Galvanized steel

Specs:

2,4 kg

Info:

PILE CAGE for tubes & poles up to 50mm Ø, complete with screw joint units, galvanised

Jetfloat® PILE CAGE max. 500 mm

Art Numbers:

450600

Material:

Galvanized steel

Specs:

20 kg

Info:

PILE CAGE, pileØ max. 500mm, holding fixture 3L, 3 adjustable plastic rollers, including screw joint units

Jetfloat® PILE CAGE max. 300 mm, 3L

Art Numbers:

451000

Material:

Galvanized steel

Specs:

16 kg

Info:

PILE CAGE pileØ max.300mm, holding fixture 3L, 4 plastic fenders,
adjustable in length, dismountable, including screw joint units, galvanised

Jetfloat® PILE CAGE max. 300 mm, 2L

Art Numbers:

451200

Material:

Galvanized steel

Specs:

14 kg

Info:

PILE CAGE, pileØ max.300mm, holding fixture 2L, max. pile Ø 300mm, 4 plastic fenders,
pile cage frame adjustable, including screw joint units, galvanised

Jetfloat® PILE CAGE max. 230 mm, 2L

Art Numbers:

451400

Material:

Galvanized steel

Specs:

16 kg

Info:

PILE CAGE, pileØ max.230mm, holding fixture 2L, adjustable pile cage frame,
3 plastic rollers, including screw joint units, galvanised

Jetfloat® INNER PILE CAGE 310

Art Numbers:

451800

Material:

Galvanized steel

Specs:

12 kg

Info:

INNER PILE CAGE, inside dimensions 310x310mm, 4 plastic fenders,
including 4 screw joint units, galvanised

Jetfloat® INNER PILE CAGE Standard

Art Numbers:

452000

Material:

Galvanized steel

Specs:

10 kg

Info:

INNER PILE CAGE standard, inside dimensions 380x380mm, including 4 screw joint units, galvanised

Jetfloat® INNER PILE CAGE 600

Art Numbers:

452500

Material:

Stainless steel

Specs:

30 kg

Info:

INNER PILE CAGE, pileØ max.600mm, 3L, with 4 diagonal plastic rollers,
including 8 screw joint units + metal cover plate, stainless steel

Jetfloat® GLIDING SYSTEM

Art Numbers:

454401

Material:

Galvanized steel

Specs:

4,2 kg

Info:

Gliding system

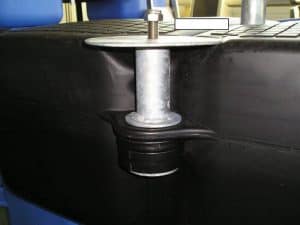

Jetfloat® SPECIAL SCREW JOINT UNIT

Art Numbers:

460000, 460100

Material:

Galvanized steel, Stainless steel

Specs:

2,5 kg

Info:

SPECIAL SCREW JOINT UNIT
with M16 fastening thread bar, complete, galvanised
